Your garage door isn’t just a functional necessity—it’s a design statement that impacts energy bills, security, and curb appeal. With 64% of homeowners now prioritizing garage upgrades, understanding garage door plan views is essential whether you’re tackling a DIY project or exploring custom designs. Let’s break down the essentials, from free blueprints to 3D modeling tools that prevent costly mistakes.
1. Garage Door Plan View Essentials
A garage door plan view acts as your installation blueprint, ensuring safety and efficiency. Whether DIY or pro-designed, these components are non-negotiable:
Structural Foundations
The header jamb—a horizontal beam above the door—supports the door’s weight and aligns tracks with your opener. Vertical side jambs stabilize the opening but need precise spacing to avoid binding. At the system’s core, the center frame anchors torsion springs, which balance the door’s weight to prevent collapse 1. Don’t skip the threshold—this bottom seal blocks drafts and pests, especially in rainy climates 2.
Mechanical Must-Haves
Install torsion springs (coiled metal rods above the door) or extension springs (mounted along tracks) to handle heavy lifting. Tracks guide steel or composite panels via rollers, while hinges connect sections. DIYers often underestimate headroom—leave 12–18 inches above the door for hardware clearance 3.
Pro Tip: Free plans from sites like Instructables often skip material specs. Cross-reference tutorials with manufacturer guides to avoid flimsy builds 45.
2. Top 2025 DIY Garage Door Trends
This year’s garage door DIY plans blend style with smart functionality:
Minimalist Modern Designs
Sleek flush-panel doors with matte finishes dominate, using horizontal aluminum slats for subtle texture. These pair perfectly with smart openers and neutral-toned homes 6.
Light-Filled Glass Hybrids
Tempered glass panels framed in corrosion-resistant aluminum flood garages with natural light. Frosted options add privacy for attached spaces like studios 78.
Energy-Saving Roll-Ups
Polyurethane-insulated doors (R-6 or higher) cut heat transfer by 30% in attached garages, slashing energy costs 9. Modular DIY kits with pre-cut foam cores simplify assembly for beginners 10.
3. Best Free Garage Door Plans for DIYers
Reliable free blueprints are gold for budget projects. Prioritize plans that specify:
- Weatherproof materials (e.g., cedar or galvanized steel)
- Spring load calculations matching your door’s weight
- Hardware spacing for tracks and rollers
Top Sources:
- Instructables: Step-by-step carriage-style door tutorials using exterior-grade hinges 4.
- Clopay Garage Door Designer: Free CAD templates for custom panel layouts 12.
- Fine Homebuilding Forums: Peer-reviewed barn door plans with community troubleshooting 13.
4. Building Custom Garage Doors That Last
Custom designs require balancing aesthetics with practicality. Start by assessing:
Climate & Usage
Humid regions demand aluminum or fiberglass; cold climates need R-12+ insulated steel. Workshops benefit from sound-dampening composites, while vehicle storage requires scratch-resistant panels 1415.
Material Smarts
- Steel: Budget-friendly and durable, with wood-grain finishes for traditional homes.
- Composite: Resists warping in coastal zones while mimicking wood grain 16.
- Wood: Beautiful but high-maintenance—seal yearly to prevent rot 17.
Scale designs confidently: single-car doors (8–10 ft wide) use lighter springs than double-car setups (16–18 ft). Tight on space? Vertical lift mechanisms save headroom 1819.
5. 3D Garage Door Modeling: Smarter DIY Planning
3D tools like SketchUp transform garage door planning by letting you:
- Test materials and colors in lifelike renders
- Spot clearance issues with overhead tracks
- Trim material waste by 20% via precise measurements 2021
While mastering 3D software takes 10–15 hours, free tutorials slash the learning curve. A Texas DIYer used Blender to simulate storm stresses on glass panels, reinforcing the frame before installation—saving $2,000 in potential repairs 21.
6. 2025 Trends: Smart Tech & Bold Styles
Stay ahead with these innovations:
- Wi-Fi Doors: Open via Alexa or get tamper alerts on your phone 23.
- Eco Materials: Recycled steel and FSC-certified wood reduce carbon footprints 24.
- Color Risks: Deep blues and sage greens boost curb appeal over safe whites 25.
Insulated doors with high-density weather stripping prevent 85% of drafts—key for climate-controlled garages 9.
Final Checklist for Garage Door Success

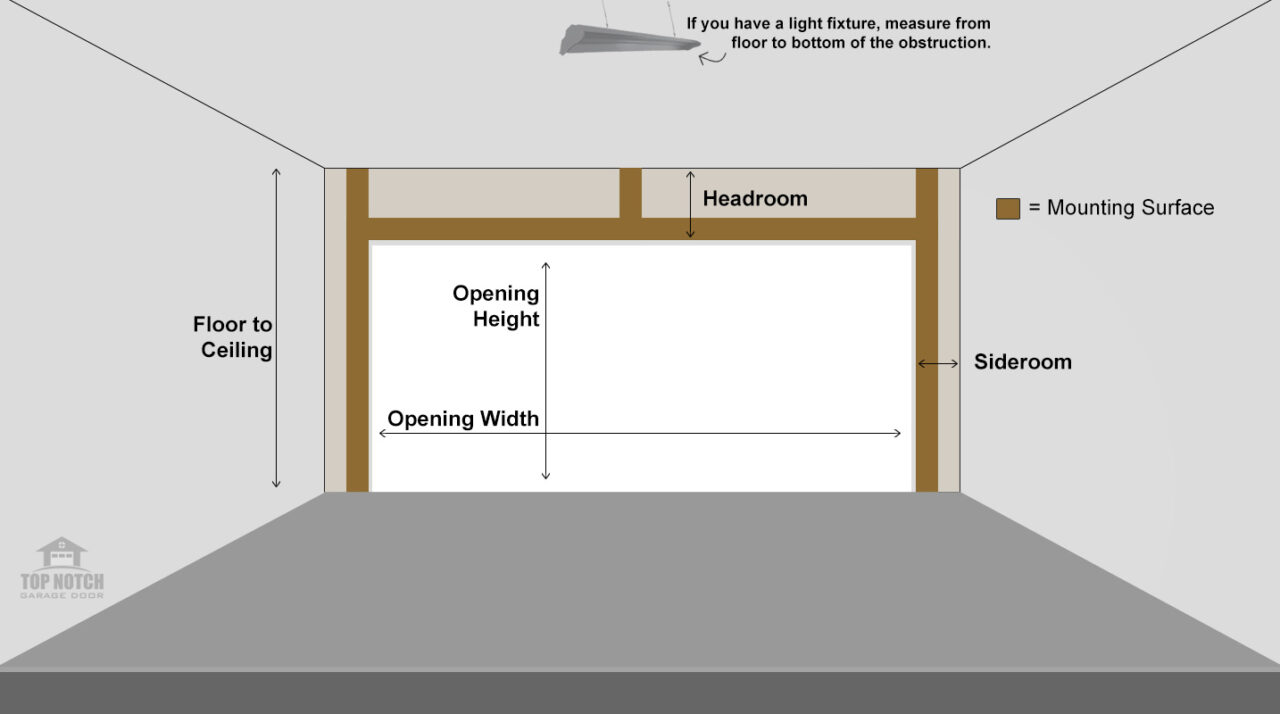

- Measure twice: Confirm headroom, sideroom, and panel gaps.
- Match springs to weight: Oversized springs snap cables; undersized strain motors.
- Prototype in 3D: Free tools like Tinkercad prevent real-world errors.
- Consult pros: For torsion spring work or complex designs, hire certified installers.
Garage door DIY plans empower homeowners to merge creativity with functionality. Whether crafting a minimalist modern door or a custom glass hybrid, prioritize structural integrity and energy efficiency. With 3D modeling and free resources, even first-timers can build doors that impress for decades.
